Home /Products/Poultry Feed Machine/High Efficiency Low Cost Project Full Set Turnkey Animal Feed Pellet Production Line

High Efficiency Low Cost Project Full Set Turnkey Animal Feed Pellet Production Line

1.0 Sets
MOQ
High Efficiency Low Cost Project Full Set Turnkey Animal Feed Pellet Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops
Showroom Location: United States, Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Kenya, Chile, Sri Lanka, Bangladesh, South Africa, Nigeria, Uzbekistan, Malaysia, Australia
Condition: New
Type: Feed Pellet Machine
Voltage: 380V 50Hz
Weight: 5000 Kg
Warranty: 3 Years
Key Selling Points: High Productivity
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 3 Years
Core Components: PLC, Gear, Gearbox, Motor, Bearing, Engine, Pressure Vessel, Pump
Max. Capacity: 5 Ton/h
Application: Poultry Farm
After-sales Service Provided: Overseas Service Provided
Product Name: Animal Feed Pellet Plant
Usage: Animal Poultry Livestock Feed Making Machine
Function: Making Feed Pellt
After Warranty Service: 3Years
Capacity: 1-10TPH
Final Product: Animal Feed Food
Processing Types: Automatic Line
Feature: High Efficiency Low Cost
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden case,or according to your requirement
Supply Ability: 200 Set/Sets per Month
Product Description
Product Description

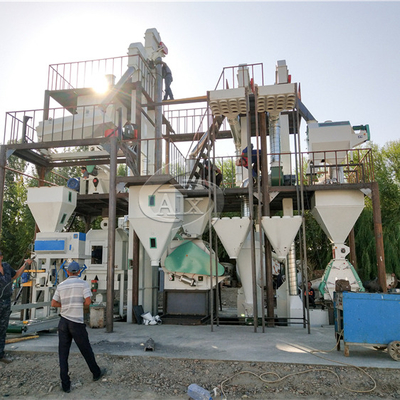

Our feed production line is a complete automatic production line, which includes crusher machine, mixer machine, ring die feed pellet machine, cooler machine, screening machine and packaging machine. We also provide steam supply system and air compression system.
our production line can make livestock and poultry feed, such as chicken, cattle, cow, duck, pig, rabbit, horse, sheep, goose, sheep, Etc
Specification
Model
SZLH250
SZLH320
350
420
Main Motor Power (kw)
22
37
55
110
Ring die bore(mm)
250
320
350
420
Size of Finished pellets (mm)
1.5-12
1.5-12
1.5-12
1.5-12
Output(T/H)
2
3-4
5-7
10-12
Machines advantages
CRUSHER MACHINE
1.Spindle speed: 2970r/min; Siemens motor, SKF bearings
2.The series is fine degree type hammer mill,mesh aperture 0.8-1.5 is better;
3.Crush room with drop-shaped structure divided into two parallel grinding chamber and shear device,the lower the drop- shaped
room with another smash to improve the hammer blow to the efficiency of materials;
4.Rotor with a special design,with two different hammer screen space to meet the exchange of different granularity;
5.Hammer's face hard surfacing materials,extended service life;
6.Door interlock device operation to ensure a safe operation when the motor does not start to open the door;
7.Rotor motor and the mill installed in the same heavy-duty base,using the pin coupling Direct transmission,rotor balancing
efficacy through,the work can be positive and negative.
MIXER MACHINE
1.Siemens motor, SKF bearings. 2.Mixing period: 180-300s 3.High uniform,patent the blade design enhanced material flow,shear,mixing,mixing uniformity very good,CV≦2.3% 4.The blades and chassis,to ensure the retention rate is very low,to prevent cross-contamination of materials;discharge gate fully open,the material instantly emptied,no residue; 5.Sealing discharge gate rubber balloon,to ensure that no leakage;shaft packing seal using specially designed to ensure that no leakage; 6.Convenience and speedy access door,designed for easy cleaning maintenance,saving time.
RING DIE FEED PELLET MACHINE
1.SS304 Conditioner,Siemens motor, SKF bearing, stainless steel ring die
2.Imported hig-quality spindle bearings SKF bearings and SIEMENS motor,to ensure smooth and reliable operation; 3.Cone roller axle combination,quickly and easily adjust the gap; 4.This machine can be equipped with an elongated single,double or twin differential quenching and tempering device,according t the requirements of different quality feed.
COOLER MACHINE
1.The cooling aer and reverse motion of grain marerials ensures the gradual cooling of materials upwards, and aetter cooling result than other products; 2.The main parts, adopting mechanical bending, rivet joint and sealing, features good airproof ability; 3.With its large capacity,even huge rain materials can be turned out,and the automation degree is high. 4.Widely used foe cooling of various materials such as the pelleting feed, extruding feed mash material and so on, Especially using for the extruding feed.
PACKAGE MACHINE
1.Unique anti-shock device to ensure measusrement accruracy,fast packing. 2.In external regulation machinery,it is convenient to repair,
3.The key parts are imported, long service life.
Finial product
Customer Feedback
Company Profile
Zhengzhou Aix Machinery Equipment Co., Ltd. is a machinery manufacturer integrating research, development, manufacture and marketing. Founded in 2006, our company have been grown to be a middle scale manufacturing and exporting enterprise and established stable business relationships with customers from many countries.
