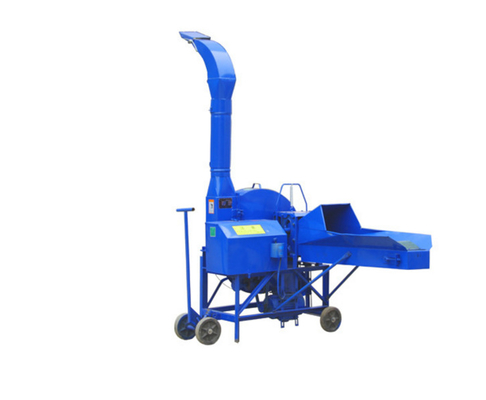

*Parameters of Chaff cutter:
-Motor power: 5.5 kw
-Motor rotating speed:1440 r/min
-Feeding power:3 kw
-Capacity:4.5--5.5t / h
-Chaff cutter length: 10-30mm
-Discharge distance of feeding materials :4-6m
-Cutter rotating speed:650 r/min
-Blade quantity:3 pieces of blades
-Drive system: V-belt drive
-V belt quantity:B2150-3pcs
-Belt conveyor(optional):Power:3kW;conveying distance:4.5m
-Application:pig/sheep/goat/cattle/horse/animal/husbandry/livestock/poutry feed processing
*Usage:
The chaff cutter can cut and further process the green (dry) corn straw, wheat straw, rice straw, other crop straw and forage crops. The processing feed uses for breed cattle, sheep, deer, horses, etc., can also be processed cotton stalk, branches, bark, used for straw power generation, ethanol and paper, plywood and other industries.
*Working principle:
The chaff cutter takes the motor as the power. The power is transmitted to the spindle, the other end of the spindle by the gear box and cardan joint transfers to the Press roller, when the grass ,hay or other feeding materials processed into the upper and lower Press roller, and at a certain speed drive the feeding materials into the cutting mechanism, and then finished feeding materials pieces are drived out .
*Advantages and features:
-The three blade cutter plate is provided with a steel stiffening ring, a rigid, strong and integral
whole; a two-way adjusting nut is added between the cutter head and the main shaft, so that the axial movement can be realized conveniently, and the clearance of the blade is adjusted more freely.
- Advanced grass feeding mechanism, unique feeding roller device, automatic feeding, conveying chain without winding grass, feeding smoothly, high production efficiency.
-The design of the knife - safety guide device, prevent gnaw knife accident, safe and reliable machine.
- unique speed regulating gear box structure, convenient and accurate grass length adjustment, reliable casing sealing and good lubrication.
-Transmission part configuration external aligning rolling bearing and universal coupling, compact structure, flexible operation, convenient assembly and disassembly.
-Advanced feeding and conveying mechanism, controlled by a switch, easy to switch, advance and retreat freely.
- the blade is made of high quality steel, refined by special process, super wear-resisting, high strength bolt connection, safe and reliable
*On-site Operation:
*Other types machines:
-Feed grinder
-Feed pellet machine
-Feed mixer
-Crop packer
*Packaging: Wooden case
*Shipping:by sea or by truck or by train
(1)Supply chaff cutter;Feed pellet machine;Feed mixer;Crop packer
(2)Supply veterinary/pet/husbandry farm equipments:
-Pig equipments: feeder;drinker;ear tag marking equiments;Ariticial Insemination Equipments;farrowing crate;slat floor; Animal Medical care equipments......
-Sheep/ goat equipments:feeder;drinker;ear tag marking equiments;Ariticial Insemination Equipments;Cage;slat floor;Animal Medical care equipments......
-Horse equipments:feeder;drinker;ear tag marking equiments;Ariticial Insemination Equipments;farrowing crate;slat floor;Animal Medical care equipments......
-Cattle equipments:feeder:drinker;ear tag marking equiments;Ariticial Insemination Equipments;calf hutch; cattle headlock;Animal Medical care equipments......
-Poutry equipments:feeder;drinker;ear tag marking equiments;Ariticial Insemination Equipments;cage;slat floor; Animal Medical care equipments......
-Pet equipments:feeder;drinker;ear tag marking equiments;Ariticial Insemination Equipments;slat floor; Animal Medical care equipments......
